SPODMRA Series

Dimming Switch with Multi-Way Option

By SensorSwitch

    CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications

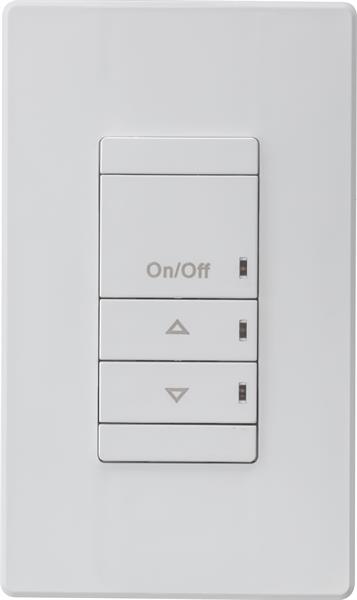

The SensorSwitch™ sPODMRA Series is a push-button dimming switch with multi-way (3-way), this cost-effective solution allows you to control fixtures from up to 9 different locations in a room.

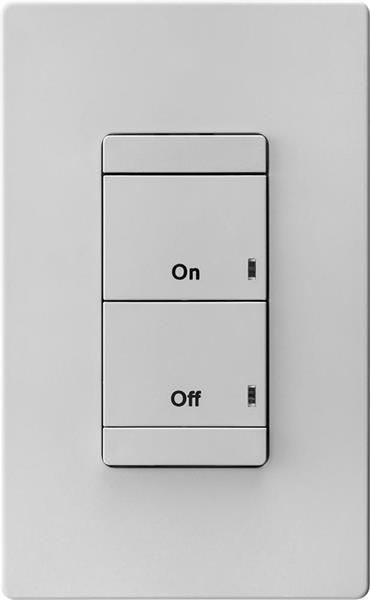

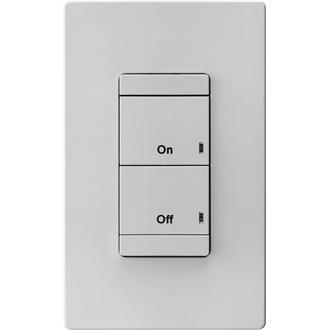

The new sPODMRA On/Off switch is now available and offers a convenient replacement for standard toggle switches. While dimming is not available with the On/Off switch, it is compatible with other multi-way (3-way) dimming devices controlling all on/off lighting loads on the multi-way bus.

The sPODMRA blends in seamlessly in commercial applications with a screwless wall plate available in six different color options. Compatible with the new SSW Series of sealed screwless wall plates (ordered separately). Sealed wall plates are available in three color finishes and are designed to protect the device from liquid intrusion.

Features:
  • Connect up to 9 devices with neutral wiring or up to 2 devices without neutral wiring on a single traveler
  • Wall switches can be spaced up to 250 feet apart
  • Compatible with 0-10V dimming luminaries
  • Programmable without removing switch plate
  • New Aesthetic
  • Standard screwless Wall Plate included - available in WH, IV, GY, AL, BK, RD
Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Surface
Control Protocol 0-10V
Product Type Switch
Color Black, Gray, Ivory, Light Almond, Red, White
Finish Matte
Voltage Rating 347
Compliance Listing BAA, CA Title 24, ROHS
Environmental Listing High Humidity
Regulatory Listing C-UL-US, cUL
Series SPODMRA
Application Type Education, Government, Healthcare, Hospitality, Offices & Banks, Retail

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET sPODMRA.pdf SPODMRA Wall Mount, Line Voltage on/off Dimming Wall Switch Spec Sheet.pdf 5/26/2022 View
    SPEC SHEET sPODMRA_BAA.pdf SPODMRA BAA Wall Mount, Line Voltage on/off Dimming Wall Switch Spec Sheet.pdf 2/7/2023 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions SPODMRA JOT Installation Instruction Sheet.pdf SPODMRA JOT Wireless, Line Voltage on/off Dimming Wall Switch Installation/Instruction Sheet.pdf 4/19/2022 View
    Installation Instructions SPODMRA_installation instructions.pdf SPODMRA Wall Mount, Line Voltage on/off Dimming Wall Switch Installation Instructions Sheet. 2/9/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ Multi-Way (MWO) FAQ: SPODMRA & WSXA Multi-Way (MWO) FAQ for SPODMRA & WSXA Series 11/15/2021 View
    FAQ WSXA and SPODMRA FAQ FAQ 11/19/2020 View
    Sell Sheet Sensor Switch Quick Recommendation Guide Sensor Switch Quick Recommendation Guide 3/13/2023 View
    Sell Sheet SensorSwitch BAA Flyer SensorSwitch™ Buy America(n) (BAA) product flyer 1/4/2023 View
