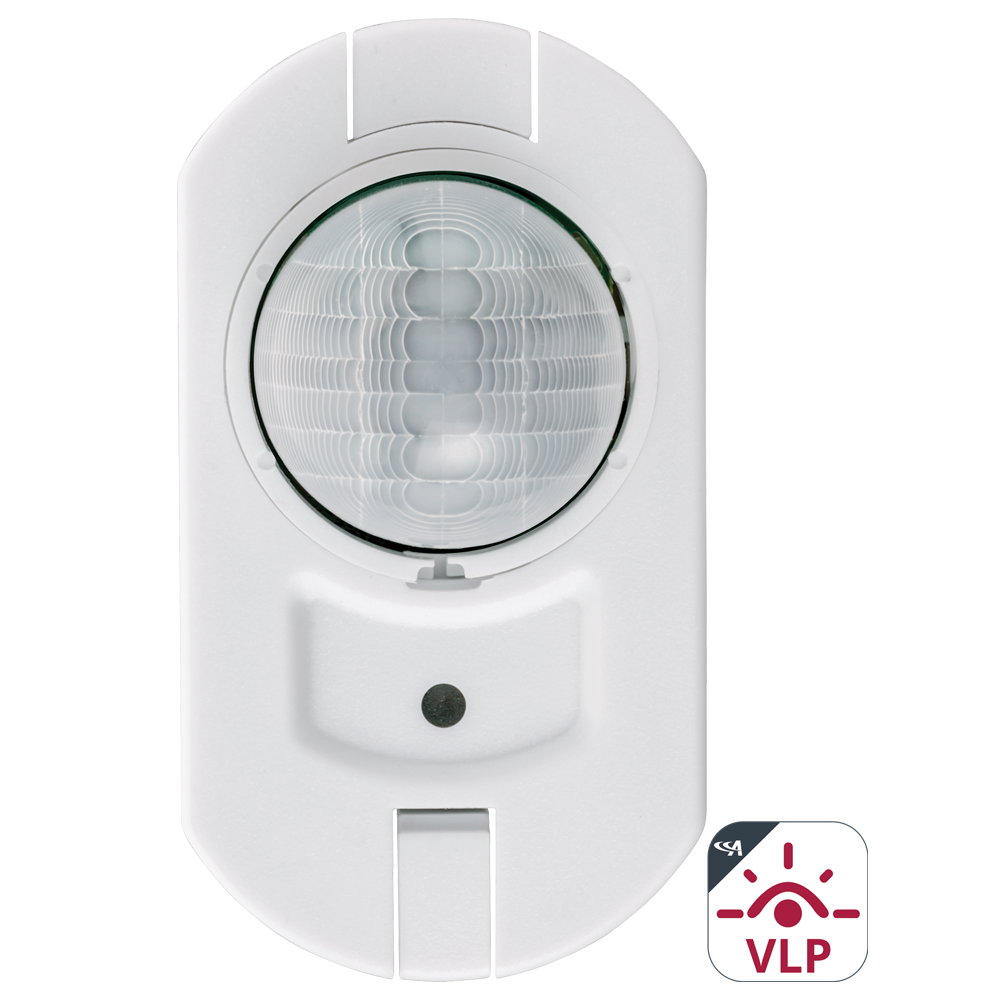

Haleon BTP

Fixture Integrated Occupancy Sensor with Dimming Photocell

By SensorSwitch

  • Overview
  • Specifications
Exclusive to the I-BEAM® IBG LED High Bay from Lithonia Lighting®, Haleon BTP sets the new standard for performance and ease of installation.

The Haleon BTP series of fixture integrated occupancy sensors with dimming photocells are ideal for standalone industrial lighting control applications. The Haleon BTP sensor is designed to be used with eldoLED drivers. Similar LED drivers with 0-10 V, with and without 12-24 VDC auxiliary power, may be used with Smarthub and Sensehub companion devices. Haleon BTP has the flexibility to change settings with the SensorSwitch VLP mobile app using Bluetooth® communication.

The NEW flashlight wakeup feature makes programming individual or small groups of fixtures easier than ever! This new feature allows you to use the VLP Mobile App to program small groups of fixtures after batch programming is completed. Simply use a flashlight to wake up the Haleon BTP sensors on selected fixtures, then update their settings in the VLP Mobile App. Check out our programming guide or watch our demo video to learn more.

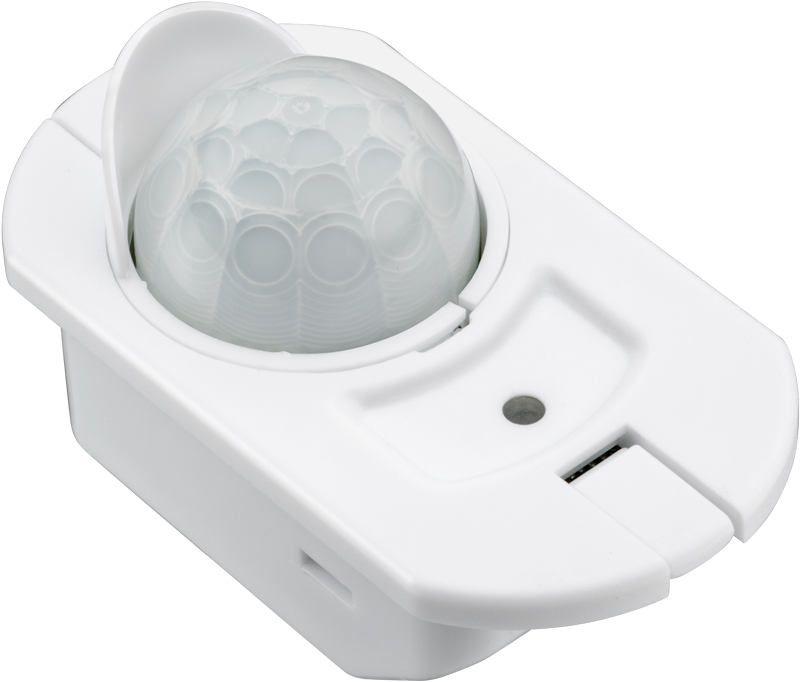

The versatile Haleon BTP sensor is optimized to perform at a variety of mounting heights typical of industrial applications. A stowable lens shield can be positioned to mask areas where detection is not needed. The small footprint and color options of the Haleon BTP enable seamless integration into the fixture without disrupting aesthetics or requiring additional mounting space.

Haleon BTP has the flexibility to change settings using your mobile device with the SensorSwitch VLP Mobile App through Bluetooth® wireless communication: up to 100 ft. range.
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Fixture Embedded
Networkable Control Occupancy Sensor
Control Protocol 0-10V
Product Type Sensor
Color Gray, White
Environmental Listing High Humidity
Series HALEON
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Residential, Retail, Sports and Recreation

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HALEON BTP.pdf HALEON BTP Fixture Integrated Indoor Highbay PIR Occupancy Spec Sheet. 11/8/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Haleon BTP Instruction Sheet.pdf Haleon BTP Fixture Integrated Indoor Highbay PIR Occupancy Sensor Instruction Sheet. 11/3/2022 View
    Installation Instructions integrated stowable lens mask.pdf HALEON Integrated Stowable Lens Mask.pdf View
    Technical Bulletins HALEON Default Settings.pdf HALEON Default Settings.pdf 9/19/2022 View
    Technical Bulletins SensorSwitch VLP Mobile App Bluetooth User Guide SensorSwitch VLP Mobile App Bluetooth User Guide 10/13/2021 View
    Technical Bulletins SensorSwitch VLP Mobile App Quick Start Guide SensorSwitch VLP Mobile App Quick Start Guide 10/13/2021 View
    Technical Bulletins TEST BLANK June 20 2017.dwg Haleon BTP Cutout Geometry
    User Manual Integrated Haleon BTP Quick Start Guide.pdf Integrated Haleon BTP Quick Start Guide View
