LSXR Series

Fixture Mount Sensor

By SensorSwitch

    CA Title 24/JA8Buy America(n)
  • Overview
  • Specifications

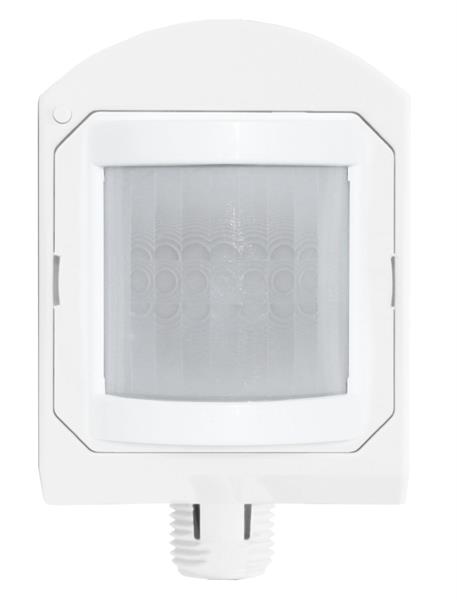

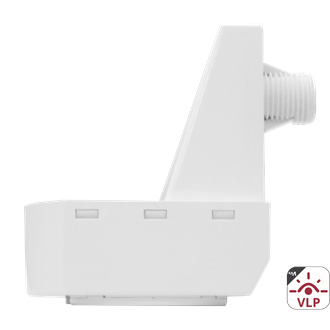

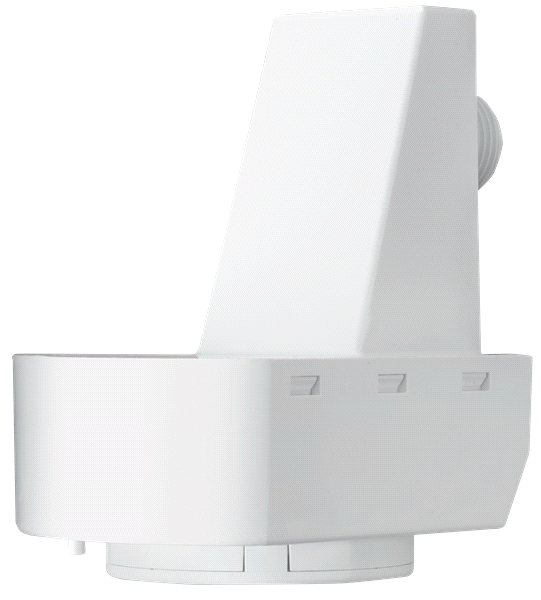

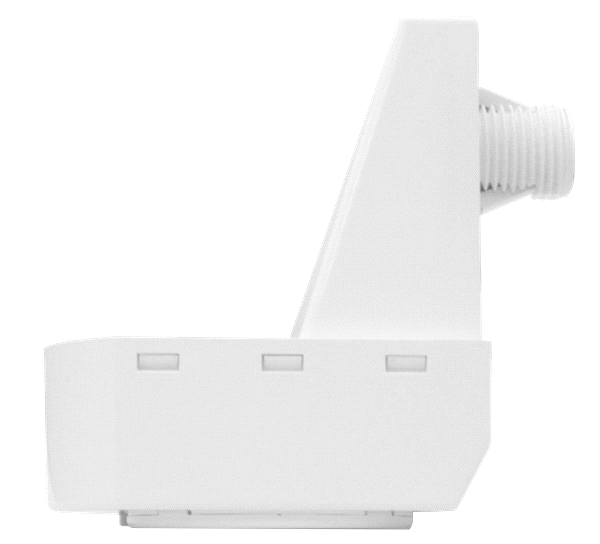

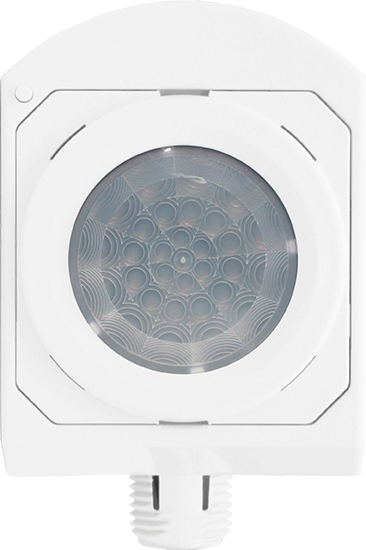

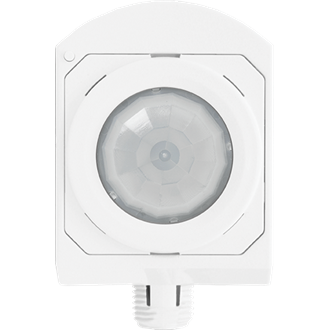

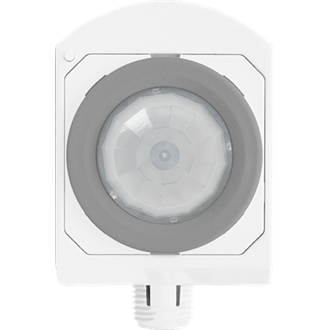

The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR Family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements. All LSXR Family sensors utilize 100% digital Passive Infrared (PIR) detection and power from / switch line voltage. Available options include dual relays, HVOLT powering, and an integrated switching / dimming photocell.
Features:

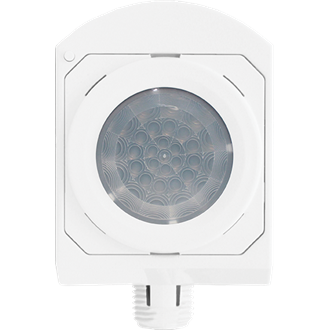

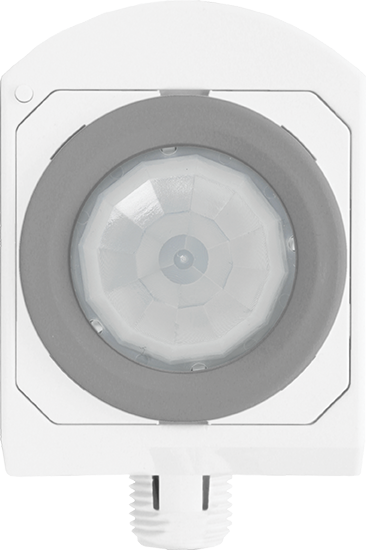

  • Four interchangeable lenses: high mount 360º; low mount 360º; high mount aisleway; and small motion 360º

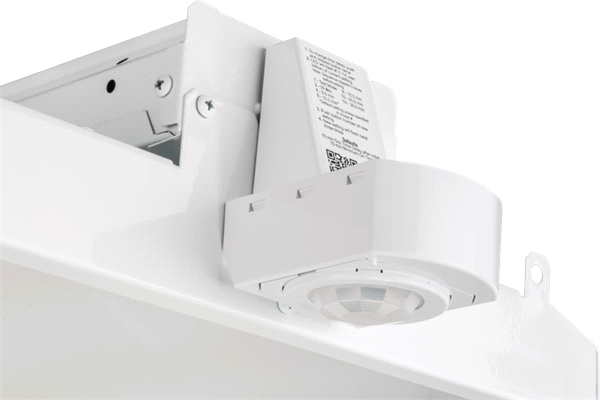

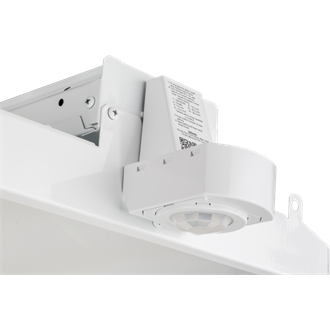

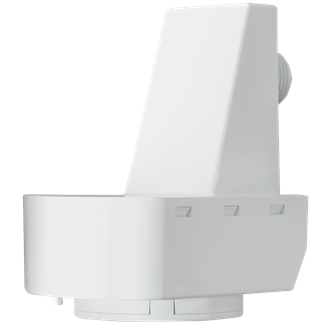

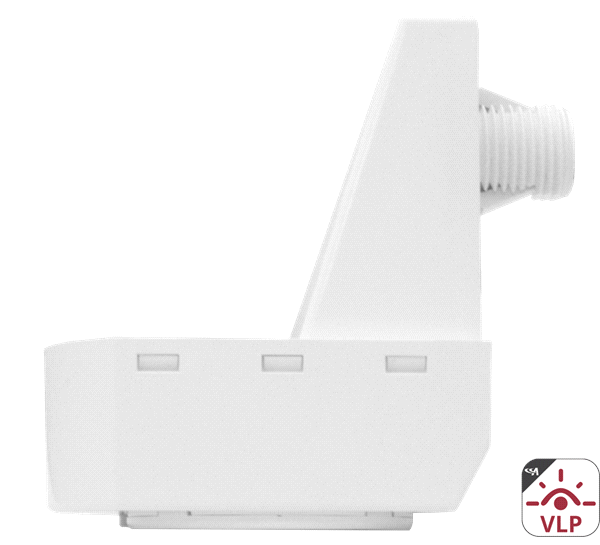

  • Integrated mounting bracket drops lens down 3” from chase nipple (no bracket accessory required)
  • 100% digital PIR detection - provides excellent RF immunity
  • No PIR field calibration or sensitivity adjustments required
  • Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
  • Powers from single or two-phase line connections
  • Reversible hot and load wires - eliminates backwards wiring
  • Photocell and 0-10 VDC dimming options
  • Digital push-button programming (no tools or analog adjustments required)
Read More
Read Less
Control Device Type Daylight Sensor, Occupancy Sensor
Mounting Type Fixture Attached
Networkable Control Daylight Sensor, Occupancy Sensor
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 208, 240, 347-480, 480
Compliance Listing BAA, CA Title 24, ROHS
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series LSXR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LSXR BAA Family.pdf LSXR BAA FAMILY 1/10/2022 View
    SPEC SHEET LSXR Family Fixture-Mount Sensor 4/18/2022 View
    SPEC SHEET LSXR Family Espanol Fixture Mount Sensor (Espanol) 8/13/2019 View
    SPEC SHEET LSXR PC ADC.pdf Fixture Mount Photo Controls 4/18/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Technical Bulletins SSI_3117_LSXR Wiring Diagram Flyer_V3.pdf SSI_3117_LSXR Wiring Diagram Flyer_V3.pdf View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ SensorSwitch VLP Mobile App FAQ SensorSwitch VLP Mobile App FAQ 10/13/2021 View
    Sell Sheet LSXR_Sell_Sheet0.pdf LSXR Sell Sheet0 View
    Sell Sheet Sensor Switch Quick Recommendation Guide Sensor Switch Quick Recommendation Guide 1/7/2021 View
    Sell Sheet SensorSwitch BAA Flyer SensorSwitch™ Buy America(n) (BAA) product flyer 2/17/2022 View
