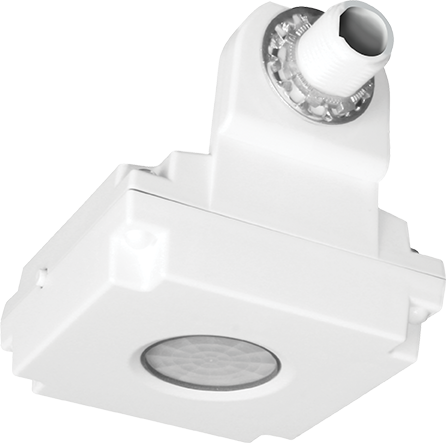

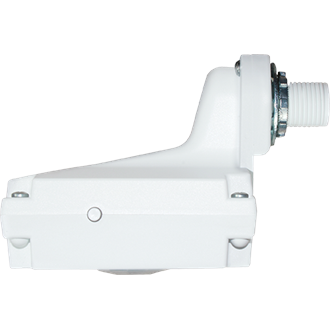

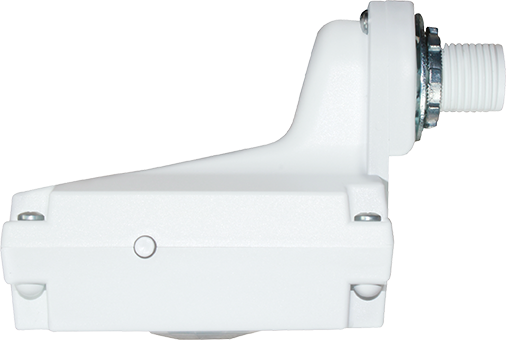

SBO BTP

Outdoor Fixture Mount Sensor

By SensorSwitch

  • Overview
  • Specifications
The SBO BTP series of fixture mount occupancy sensors are rated for outdoor use with dimming photocells, making it ideal for indoor standalone industrial lighting control applications requiring an IP66 wet location rating.

With its clean design and reliable performance, the SBO BTP sensor offers 100% digital passive infrared (PIR) technology that’s tuned for walking size motion, helping to achieve code compliance without compromising the aesthetic of the light fixture or the space created. The versatile SBO BTP sensor is optimized to perform at a variety of mounting heights typical of industrial applications.

Easy to install and configure, the VLP mobile app allows you to change settings using visible light programming or Bluetooth® wireless communication through the Smart Hub.

This sensor is designed to be used with eldoLED or similar LED drivers with 0-10 VDC, 12-24 VDC auxiliary power and stand-by mode. eldoLED drivers deliver smooth and flicker-free deep dimming performance down to 0.1% combined with the ability to upgrade technology, scaling as your business needs evolve.
Read More
Read Less
Control Device Type Daylight Sensor, Fixture Embedded
Mounting Type Pole Mount
Control Protocol 0-10V
Product Type Sensor
Color Black, Bronze
Finish Semi-Gloss
Voltage Rating 120-277
Environmental Listing High Humidity
Regulatory Listing CSA
Series SBO
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less
