VERTEX

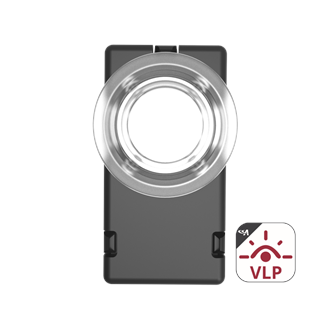

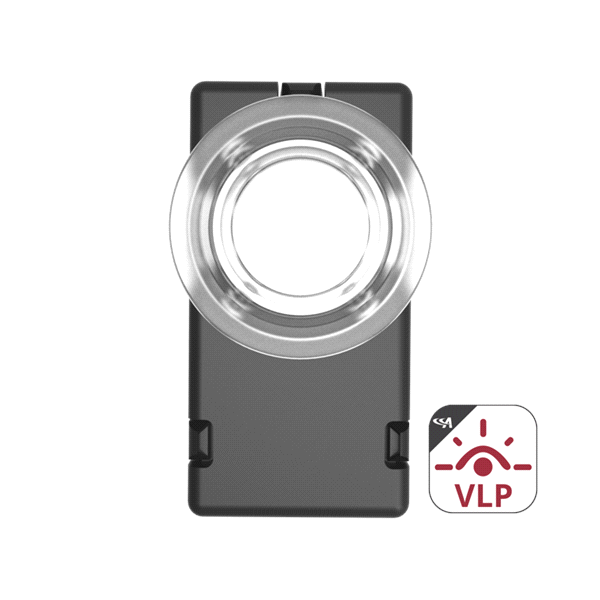

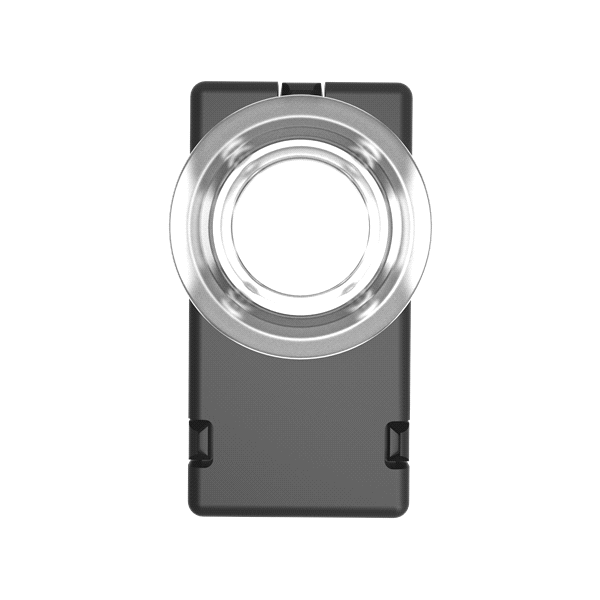

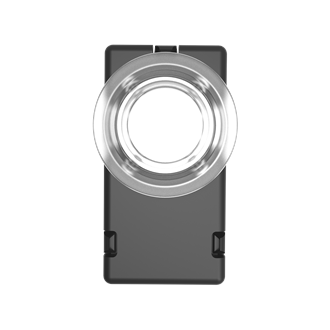

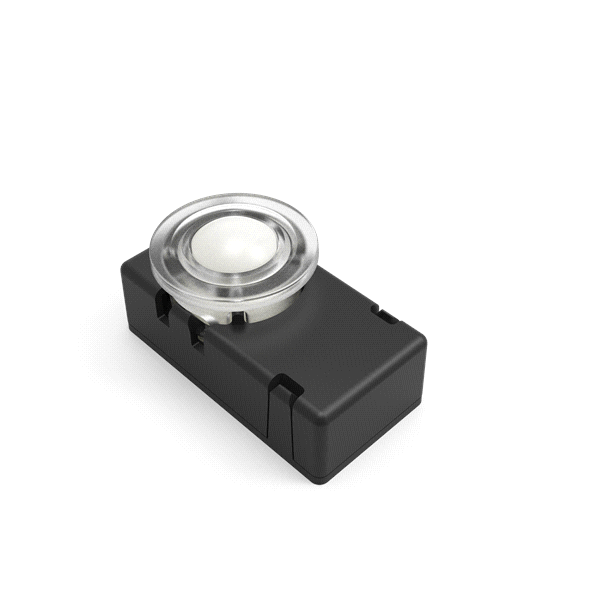

Luminaire-Embedded Occupancy and Ambient Light Sensor

By SensorSwitch

  • Overview
  • Specifications

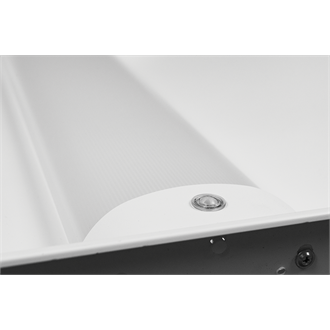

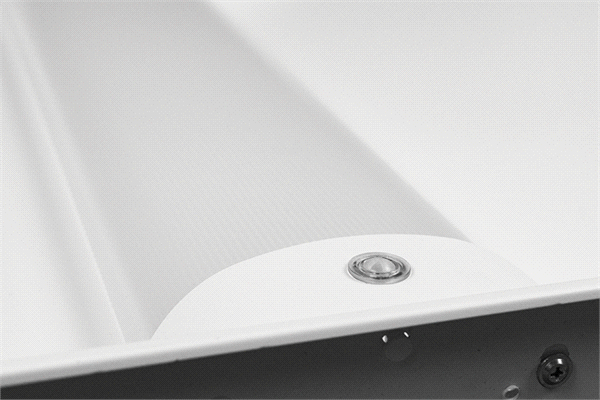

The VERTEX series of luminaire-embedded occupancy and ambient light sensors are ideal for standalone or network commercial lighting control applications. Its ultra-small footprint enables seamless integration into an indoor or outdoor luminaires without disrupting aesthetics or requiring additional mounting space.

The versatile VERTEX sensor is optimized to perform at a variety of mounting heights typical of commercial applications. Simplicity is a key feature of the VERTEX sensor where configuration settings can be changed using the SensorSwitch Mobile App through camera flash programming or Bluetooth® wireless programming.


Features:
  • Configurable using the SensorSwitch VLP Mobile App using camera flash programming or Bluetooth® wireless programming
  • Direct digital communication with eldoLED ensures reliable dimming and control
  • Two lens configurations perform at various heights - high mount 360º
  • Attachable gasket to accommodate varying placement thicknesses
  • 100% digital passive infrared (PIR) detection provides excellent RF immunity
  • Auto-dimming via photocell control
  • High/Low/Off occupancy controlled dimming capability
  • Integrated low profile and small footprint design
  • Corrosion-resistant coating applied to all electronics per LT option for added durability
  • No PIR field calibration or sensitivity adjustments required
  • Non-volatile settings memory
  • Convenient test mode quickens initial walk and/or photocell testing
  • White LED indicator for occupancy detection and programming feedback
  • Ability to aid in Title 24 compliance
  • Tested to NEMA WD 7-2011
Read More
Read Less
A+ Capable Yes
Control Device Type Daylight Sensor
Mounting Type Fixture Embedded
Networkable Control Daylight Sensor, Occupancy Sensor
Control Protocol Digital
Product Type Sensor
Color Black
Environmental Listing High Humidity
Series VERTEX
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Residential, Retail, Sports and Recreation

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET VERTEX.pdf Fixture Integrated Occupancy Sensor with Dimming Photocell 7/30/2020 View
