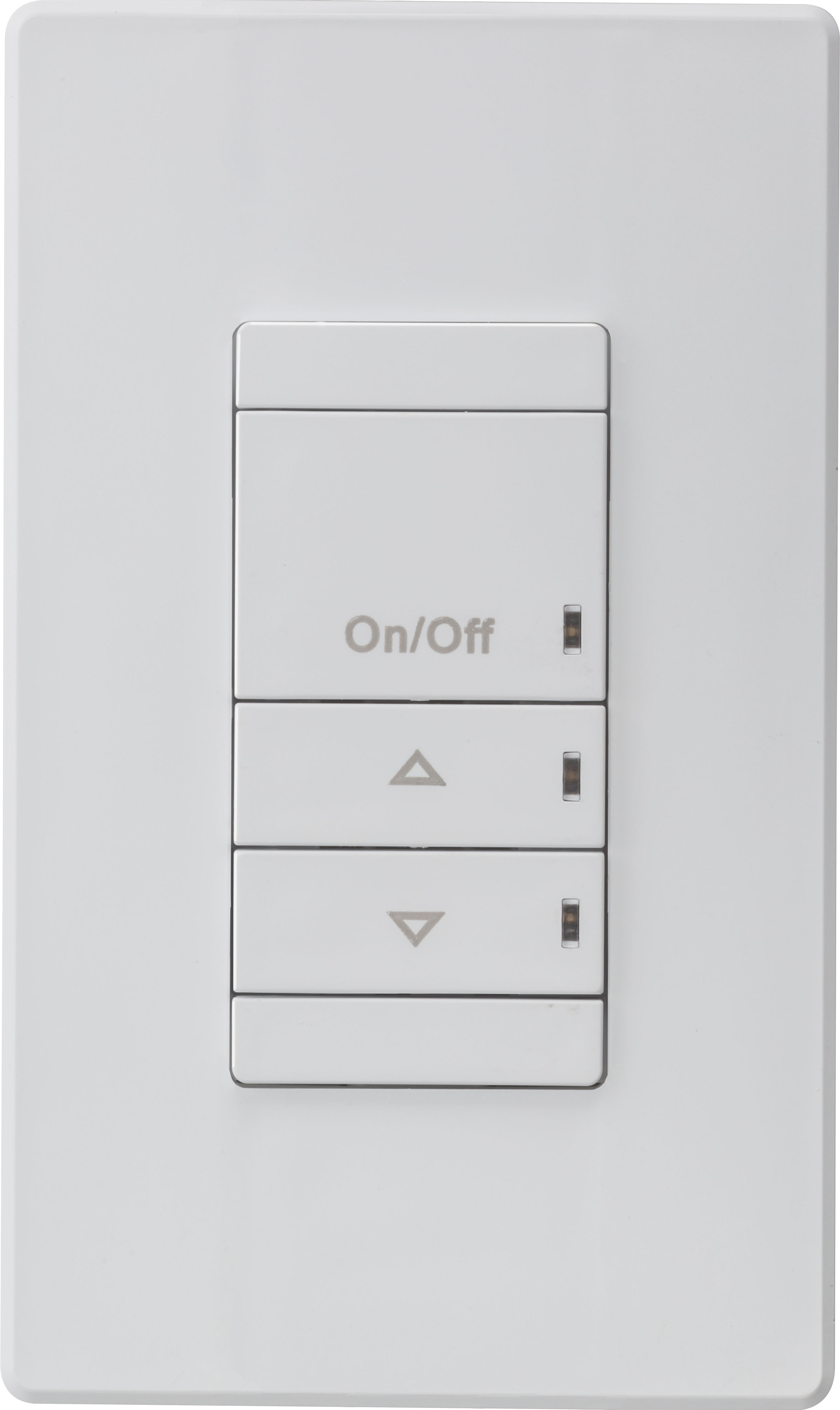

sPODMRA D WH.jpg

SPODMA Series

Low-Voltage Push-Button Switch with Manual Auto On

By SensorSwitch

    CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
The sPODMA Push-button switch is a low voltage wall station interface with standard SensorSwitch occupancy sensor and power packs to implement a wide range of single and bi-level switching applications. And now in a new aesthetic with a screwless wallplate available in six colors.


Features:
  • Enables Standard Occupancy Sensors to be used for Manual On Operation Alternative Usage as Override Switch for Auto-On Applications
  • Single Gang Decorator Style w/ either 1 or 2 On/Off Switches
  • Soft-Click Push-Buttons
  • Programmable w/o Removing Switch Plate
  • Optional Dual Manual On Operation
  • Optional Multi-way Operation
  • Optional 0-10 VDC Dimming Control
  • Auto return to last set level - on dimmable devices, returns to last set dim level before switched off
  • Compatible with the new SSW Series of sealed screwless wall plates (ordered separately). Sealed wall plates are available in three color finishes and are designed to protect the device from liquid intrusion.
Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Surface
Control Protocol 0-10V
Product Type Switch
Color Gray, Ivory, Light Almond, White
Voltage Rating 120-277, 347
Compliance Listing BAA, CA Title 24, ROHS
Environmental Listing High Humidity
Series SPODMA

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET sPODMA Series.pdf SPODMA Wall Mount, Low Voltage on/off Dimming Wall Switch Spec Sheet. 11/22/2022 View
    SPEC SHEET sPODMA_BAA.pdf SPODMA BAA Wall Mount, Low Voltage on/off Dimming Wall Switch Spec Sheet. 2/7/2023 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions SPODMA_installation instructions_091620.pdf SPODMA Wall Mount, Low Voltage on/off Dimming Wall Switch Instruction Sheet. 9/16/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet SensorSwitch BAA Flyer SensorSwitch™ Buy America(n) (BAA) product flyer 1/4/2023 View
