CMR Series

Ceiling Mount, Line Voltage Sensors

By SensorSwitch

  • Overview
  • Specifications

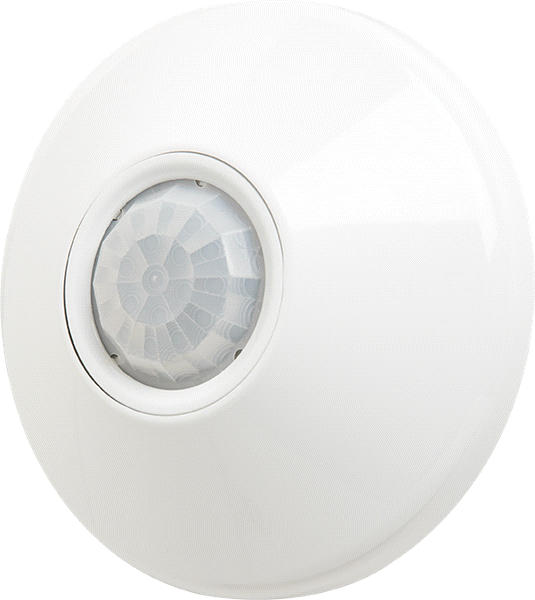

The CMR is a line voltage sensor that easily mounts directly to a ceiling. Ceiling mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. These sensors are capable of covering an entire private office or small room by themselves.

A line voltage sensor provides one relay for a single-level control, while the 2-pole version provides a second relay for an additional level of control. For rooms with obstructions, these sensors are also offered with Dual Technology, which adds Microphonics™ detection to the Passive Infrared (PIR) detection.
Features:
  • PIR occupancy detection
  • 360° coverage
  • Self-contained relay (no power pack needed)
  • Time delay: 30 sec to 20 min
  • No minimum load requirements
  • Push-button programmable
  • Green LED indicator
  • 100-hour lamp burn-in timer mode
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Flush, Surface
Product Type Sensor
Color White
Finish Matte
Voltage Rating 208, 240, 480
Environmental Listing High Humidity
Series CMR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
